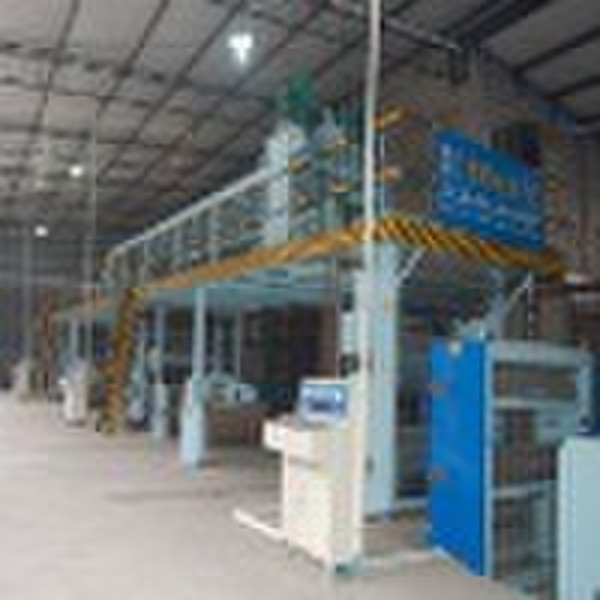

Production Line of Five-layer Corrugated Cardboard

YWJ200-1800 Production Line of Five-layerCorrugated Cardboard Making MachineDesign Speed:200m/min Economic Speed: 160m/min for three-layer cardboards 120m/min for five-layer cardboardsNo.ItemQty.Remarks1Hydraulic Mill Roll StandFully hydraulic driving, pneumatic braking, hydraulic valve: domestic brand 2Paper Feeding Trolley 3Single FacerAdsorption type,Φ360mm,material of corrugated roller:48CrMo alloy steel of good quality, variable-frequency motor 4Double-layer OverbridgeAdsorption type, electromotion deflection-corrected 5Pre-heater Φ1000mm electromotion adjusting wrap angles 6Three-roller Pre-heaterΦ1000mm electromotion adjusting wrap angles 7Dual Pasting MachineGlue rollerΦ290mm,variable-frequency controller, variable-frequency motor 8Binding & Drying Machine(Double Facer)Main structural channel:300mm, 600x18pcs heating plates, equipped with 4 groups of contact pressure plates for front part, intensive pressure rollers, long belt hydraulic lifting up or lowering down, pneumatic straining, manual deflection-corrected 9Main Transmission SystemIndependent drive box, variable-frequency controller 10CNC Thin Blade Slitting MachineProduced by Jiayou of Qingdao, five-second order change 11CNC Rotary Blade Transverse Cutting MachineProduced by Jiayou of Qingdao 12Stacking MachineAutomatic stacking and counting, transverse output 13Waste Adsorption System 14Glue Making System Including 1 main body tank,1 carrier tank,1 glue storing tank,2 glue pumps for pumphouse,2 glue pumps for single facer,1 glue pump for glued part. Pipeline provided by customers 15Pneumatic System Including gas and water separator and 1 0.6m³storage tank. Gas pump and pipeline provided by customers 16Electric System Adopting domestic brand. Electric wires provided by customers 17Steam System Ball float water carrying equipment,upper pipeline of the equipment valve provided by customers
